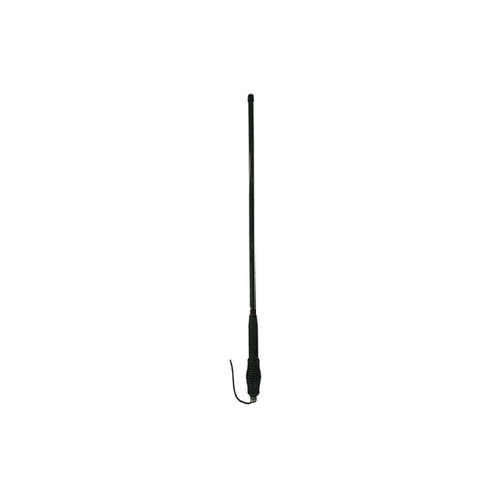

Xtreme Trucker Edge 4X4 Antenna for Cel Fi Go 3G 4G Cellular 107CM 698-2170Mhz 6/8dBi

Please login or register to view pricing.


Future-proof your vehicle installations with this high grade, ruggedised Omni Trucker Edge antenna. This premium grade cellular antenna will satisfy 3G and 4G capabilities for all the major networks in Australia and can be used for commercial and industrial 3G and 4G applications.

The Xtreme Omni Trucker Edge Antenna (1070mm) will provide the perfect solution for voice and data applications where high gain antennas are required while on the move. Combine with Cel-Fi applications to never be out of contact when away from home.

FEATURES

  • 6 dBi gain across lower bands 698-960 MHz
  • 8 dBi gain across upper bands 1710-2170 MHz
  • Option of white or black antenna
  • Ruggedised construction for extreme conditions
  • Extra heavy duty spring stainless steel base ideal for bull bar mount
  • Included is 4 metres of LMR240 Ultra Flex cable fitted with SMA/M connector
  • No tuning necessary
  • Bracket additional

ELECTRICAL SPECIFICATIONS

Frequency Range 698-960 MHz / 1710-2170 MHz
Input Impedance 50 Ω
Peak Gain 6 / 8 dBi
VSWR ≤3.0:1 / ≤2.0:1
Polarisation Vertical, linear
Horizontal Beamwidth 360° (omnidirectional)
Vertical Beamwidth 22 / 12°
Maximum Input Power 50 W

MECHANICAL SPECIFICATIONS

Height 1050mm
Weight 1.40kg
Operating Temperature -40°C-+70°C
Termination FME-Female
Material Glass/Steel
Dimensions 1200 x Ø32.5 mm
Antenna Colour Black
Rated Wind Velocity 210 km/h
Diameter of installing pole 32.5mm

(ANT-XA-OM-202TB-2)

SKU ANT-XA-OM-202TB-2
Barcode # 702785124970
Brand Xtreme Antennas
Shipping Weight 1.8000kg
Shipping Width 1.160m
Shipping Height 0.080m
Shipping Length 0.080m
Shipping Cubic 0.007424000m3
